🚀 3D Printed Electronics: The Ultimate 2026 Guide to Printing Circuits

Forget waiting weeks for a PCB manufacturer; you can now print functional, custom circuits directly onto 3D shapes in your own workshop. 3D printed electronics are no longer just a lab experiment but a practical reality for creating wearable sensors, flexible antennas, and embedded logic that traditional manufacturing simply cannot achieve.

Imagine holding a drone wing that “fels” the wind because its skin is printed with pressure sensors, or a medical bandage that monitors healing in real-time without a single wire. This isn’t science fiction; it’s the new frontier where additive manufacturing meets functional inks.

Did you know that researchers at MIT recently printed a resetable fuse using standard extrusion technology, proving that active logic components can be created without clean rooms? The barrier to entry is dropping, and the possibilities are expanding faster than we can sinter silver nanoparticles.

Key Takeaways

  • Design Freedom: Unlike flat PCBs, 3D printed electronics allow you to create conductive traces on complex, curved, and 3D geometries.
  • Rapid Protyping: Cut development time from weeks to hours by printing structural parts and circuits in a single workflow.
  • Material Versatility: From silver nanoparticle inks for high conductivity to carbon nanotubes for flexible wearables, the material palette is expanding rapidly.
  • Cost Efficiency: Eliminate waste and tooling costs by depositing material only where needed, making small-batch custom electronics viable.
  • Future-Ready: As active components like transistors become printable, the line between mechanical structure and electronic circuit will vanish entirely.

Table of Contents

⚡️ Quick Tips and Facts

Before we dive into the nitty-gritty of printing circuits with a nozzle, let’s hit the reset button on what you think you know about electronics manufacturing. Here are the golden nugets from our team at 3D Printed™ that will save you hours of frustration and maybe even a few burnt fingers:

  • It’s Not Just “Plastic with Metal”: 3D printed electronics isn’t just about mixing silver into PLA. It involves functional inks, nanoparticles, and dielectric polymers that behave very differently than standard filaments.
  • The “Conductive” Myth: Not all “conductive filaments” are created equal. Some are just carbon-filled plastics with high resistance, suitable for ESD protection but useless for powering an LED. True conductivity often requires post-processing like sintering.
  • Layer Adhesion is King: In traditional PCBs, copper is etched onto a flat board. In 3D printing, you are building a 3D lattice of conductive paths. If your Z-axis adhesion is weak, your circuit will fail the moment you bend it.
  • The MIT Breakthrough: Recent research from MIT has shown that you can print resetable fuses using standard extrusion printers and copper-doped polymers, effectively creating active logic without semiconductors. This changes the game for simple control circuits.
  • Material Matters: You can’t just swap inks. Silver nanoparticle inks need specific temperatures to sinter, while carbon nanotube inks might clog a standard 0.4mm nozzle.

Curious about how we actually get metal to flow out of a plastic nozzle? We’ll unravel the magic of Aerosol Jet and Direct Ink Writing in the next section.

For more on the general ecosystem of additive manufacturing, check out our guide on 3D Printed technologies.

📜 From Lab Bench to Circuit Board: A Brief History of 3D Printed Electronics

a close-up of a circuit board

The story of 3D printed electronics isn’t a straight line; it’s a jaged graph of failed experiments, eureka moments, and a relentless drive to stop wasting copper.

The Early Days: Etching vs. Printing

For decades, the industry relied on subtractive manufacturing. You start with a copper-clad board, apply a photoresist, expose it to UV light, and then etch away the unwanted copper with harsh acids. It’s messy, wasteful, and limited to 2D planes.

The first whispers of additive electronics came in the 190s with inkjet printing of conductive inks. Researchers realized that if they could drop conductive ink precisely, they could create circuits without etching. But early inks were unstable, and the resolution was terrible.

The FDM Revolution

Fast forward to the 2010s. The explosion of Fused Deposition Modeling (FDM) brought 3D printers into garages and maker spaces. Suddenly, people were experimenting with conductive filaments. Brands like Proto-Pasta and eSUN released carbon-filled PLA. It was a hit for hobbyists, but engineers quickly realized the resistance was too high for anything beyond a simple sensor or antenna.

The Modern Era: Multi-Material and Active Components

Today, we are in the multi-material era. Machines like the nano3Dprint A20 and nScrypt’s 3Dn Series can switch between structural plastics and conductive pastes in milliseconds. We are no longer just printing wires; we are printing capacitors, inductors, and even active components like the MIT team’s resetable fuses.

Why did it take so long to move from printing wires to printing logic? The answer lies in the materials science of nanoparticles and the precision of micro-dispensing, which we’ll explore next.

🛠️ The Core Technologies: How We Actually Print Circuits


Video: 3D Printed Tech GADGETS…








You might think 3D printing electronics is just “printing with metal,” but the reality is a high-stakes game of fluid dynamics and thermal engineering. Here are the five pillars of the technology.

1. Aerosol Jet Printing: The Spray-Paint of Microelectronics

Imagine a spray can that can draw a line 10 microns wide. That’s Aerosol Jet Printing (AJP).

  • How it works: An inert gas atomizes the conductive ink into a fine mist. A sheath gas then focuses this mist into a tight beam, depositing it onto the substrate.
  • The Magic: It can print on curved surfaces and 3D geometries without contact.
  • Best For: High-resolution interconnects, antennas, and sensors on complex shapes.
  • The Catch: It requires expensive equipment and specialized inks.

2. Fused Deposition Modeling (FDM) with Conductive Filaments

The most accessible method for the average maker.

  • How it works: Standard FDM printers melt a filament infused with conductive particles (usually carbon or metal).
  • The Magic: You can use a standard Prusa or Creality printer with a modified nozzle.
  • Best For: ESD-safe enclosures, simple antennas, and low-current sensors.
  • The Catch: High electrical resistance. You can’t run high currents through these traces.

3. Stereolithography (SLA) for High-Resolution Interconnects

SLA uses light to cure liquid resin.

  • How it works: Conductive particles are suspended in a photopolymer resin. The laser cures the resin, trapping the particles.
  • The Magic: Incredible resolution (down to 25 microns).
  • Best For: Micro-fluidic devices with embedded sensors and high-density interconnects.
  • The Catch: The resin can be brittle, and the conductivity is often lower than pure metal.

4. Inkjet Printing: Dropping Precision onto Substrates

The digital version of a pen.

  • How it works: Piezoelectric or thermal printheads eject droplets of conductive ink.
  • The Magic: Non-contact, high speed, and great for roll-to-roll manufacturing.
  • Best For: Flexible electronics, RFID tags, and large-area sensors.
  • The Catch: Ink viscosity must be very low, limiting the types of materials you can use.

5. Direct Ink Writing (DIW): The Swiss Army Knife of Additive Electronics

This is the favorite of our engineering team for protyping.

  • How it works: A syringe pump pushes viscous pastes through a nozzle, layer by layer.
  • The Magic: Can handle high-viscosity inks (like silver paste) and structural materials simultaneously.
  • Best For: Embeding components, printing batteries, and creating 3D circuit boards.
  • The Catch: Requires precise calibration of flow rates and pressure.
Technology Resolution Material Viscosity Best Application Cost
Aerosol Jet < 10 µm Low to Medium Curved Antennas High
FDM 10+ µm High (Filament) Protypes, Enclosures Low
SLA 25-50 µm Medium Micro-sensors Medium
Inkjet 20-50 µm Low Flexible Circuits Medium
DIW 50-20 µm Very High Embedded Electronics Medium-High

Still wondering how we get a 3D printer to switch from plastic to silver paste mid-print? The secret lies in the dual-extrusion systems and SmartPump technologies we’ll discuss in the industry leaders section.

🧪 Materials Matter: Conductive Inks, Polymers, and Nanomaterials


Video: An introduction to printed electronics.








If the printer is the body, the materials are the soul. Choosing the wrong ink is like putting diesel in a gasoline engine—it just won’t run.

Silver Nanoparticles vs. Copper: The Great Conductivity Debate

  • Silver: The gold standard (pun intended). Silver nanoparticle inks offer the highest conductivity and are easy to sinter at low temperatures. They are the go-to for high-performance circuits.
    Pros: High conductivity, stable, easy to process.
    Cons: Expensive, prone to oxidation if not sintered properly.
  • Copper: The challenger. Copper is cheaper and has excellent conductivity, but it oxidizes rapidly when exposed to air, turning into an insulator.
    Pros: Cost-effective, high conductivity.
    Cons: Requires inert atmosphere sintering or protective coatings.
  • The MIT Solution: As mentioned, MIT researchers found that copper-doped polymers can act as resetable fuses, leveraging the unique thermal properties of the composite rather than pure conductivity.

Carbon Nanotubes and Graphene: The Future is Flexible

  • Carbon Nanotubes (CNTs): These provide a flexible, stretchable conductive network. They are perfect for wearable electronics that need to bend with the body.
  • Graphene: Offers incredible strength and conductivity. It’s often used as a filler to enhance the mechanical properties of the printed structure while maintaining electrical pathways.

Dielectric and Substrate Materials: More Than Just Glue

You can’t have a circuit without an insulator.

  • Polymers: PLA, ABS, and TPU are common, but for high-frequency applications, you need low-loss dielectrics like PTFE or specialized polyimides.
  • Substrates: Flexible substrates like PET or Kapton are essential for wearable tech. Rigid substrates like FR4 are still used for traditional PCBs, but 3D printing allows for conformal printing directly onto these surfaces.

Can you print a battery? Yes, but it requires specific zinc-polymer inks and precise layering, a topic we’ll touch on in the applications section.

🚀 Top Applications: Where 3D Printed Electronics Are Changing the Game


Video: Why You Should 3D Print Your Electrical Enclosures.








The theory is cool, but what can you actually do with it? Here are the top 5 applications that are moving from the lab to the real world.

1. Wearable Health Monitors and Smart Textiles

Imagine a shirt that monitors your heart rate, temperature, and hydration levels, all printed directly onto the fabric.

  • How it works: Conductive inks are printed onto flexible substrates or textiles to create sensors.
  • Real-World Example: Researchers are developing smart bandages that monitor wound healing in real-time.
  • Why 3D Printing? It allows for custom-fit sensors that conform to the unique shape of a patient’s body.

2. Flexible and Stretchable Antennas for IoT

The Internet of Things (IoT) needs antennas that can be embedded in anything.

  • How it works: 3D printing allows for 3D antennas that fit into the curvature of a drone or a robot, improving signal strength.
  • Real-World Example: nScrypt has demonstrated printing antennas on Kevlar helmets, creating a communication system that is part of the helmet itself.
  • Why 3D Printing? Traditional antennas are flat and rigid. 3D printing creates conformal antennas that maximize space efficiency.

3. Custom Sensors for Robotics and Automation

Robots need to “feel” their environment.

  • How it works: Pressure, temperature, and proximity sensors can be printed directly onto robot grippers or limbs.
  • Real-World Example: A robotic hand with embedded tactile sensors that can detect the texture of an object.
  • Why 3D Printing? It eliminates the need for external wiring and allows for distributed sensing across complex geometries.

4. Rapid Protyping of PCBs and Enclosures

Why wait weeks for a PCB to be manufactured?

  • How it works: Design a circuit in CAD, print the enclosure and the traces in one go.
  • Real-World Example: Engineers at nano3Dprint use their A20 printer to create functional prototypes in hours, not days.
  • Why 3D Printing? It drastically reduces time-to-market and allows for iterative design on the fly.

5. Embedded Electronics in Complex Geometries

This is the holy grail.

  • How it works: Printing electronics inside a 3D structure, such as a drone wing or a car dashboard.
  • Real-World Example: MIT is working on printing a magnetic motor entirely using extrusion printing, where the windings and magnets are part of the structure.
  • Why 3D Printing? It enables mechatronic integration, where the mechanical and electronic systems are inseparable.

Is this technology ready for your home workshop? Not quite. Let’s look at the pros and cons to see where the barriers lie.

🏭 Industry Leaders and Pioners: Who Is Leading the Charge?


Video: 8 Brilliant Projects with 3D Printing and Electronics!








The field of 3D printed electronics is dominated by a mix of academic powerhouses and specialized commercial entities.

nScrypt: The Micro-3D Printing Powerhouse

nScrypt is arguably the leader in conformal printing. Their 3Dn Series systems use the patented SmartPump™ technology, which allows for the precise dispensing of over 10,0 materials.

  • Key Feature: They can print on doubly curved surfaces and even bare die.
  • Real-World Impact: They have successfully printed circuits on a Kevlar helmet, demonstrating the ability to integrate electronics into rugged, non-planar structures.
  • Visit: nScrypt Printed Electronics

Nano Dimension: The 3D Printed PCB Revolution

Nano Dimension focuses on additive manufacturing of PCBs. Their DragonFly series uses inkjet technology to print layers of dielectric and conductive inks.

  • Key Feature: They can create multilayer PCBs with embedded components, all in one print job.
  • Real-World Impact: Used by aerospace and defense companies to create lightweight, complex circuit boards.
  • Visit: Nano Dimension

Xerox and the Evolution of Functional Printing

Xerox has been a pioneer in functional printing, leveraging their expertise inkjet technology to develop conductive inks and flexible electronics.

  • Key Feature: High-speed roll-to-roll processing for mass production.
  • Real-World Impact: Developing smart labels and RFID tags for the supply chain.

MIT and Academic Breakthroughs in Additive Manufacturing

MIT continues to push the boundaries of what’s possible. Their recent work on resetable fuses and 3D printed active electronics is a game-changer.

  • Key Feature: Using standard extrusion printers to create active components.
  • Real-World Impact: Democratizing the ability to create “smart” hardware without clean rooms.
  • Read More: MIT News on 3D Printed Electronics

⚖️ Pros and Cons: Is 3D Printed Electronics Right for Your Project?


Video: Redesigning Vintage Electronics with 3D Printing.








Before you rush out to buy a nano3Dprint A20, let’s weigh the reality against the hype.

The Good (✅)

  • Design Freedom: Create circuits on 3D surfaces that are impossible with traditional PCBs.
  • Rapid Protyping: Go from CAD to functional prototype in hours, not weeks.
  • Material Efficiency: Additive manufacturing deposits material only where needed, reducing waste.
  • Customization: Easily tailor sensors and circuits to specific shapes and sizes.
  • Integration: Embed electronics directly into the structure, reducing assembly steps.

The Bad (❌)

  • Cost: High-end systems like nScrypt and Nano Dimension are expensive (tens of thousands of dollars).
  • Resolution: While improving, 3D printed traces are generally wider and less dense than etched copper.
  • Conductivity: Most printed conductors have higher resistance than solid copper.
  • Material Limitations: Not all materials are compatible with all printing methods.
  • Post-Processing: Many inks require sintering (heating) to become conductive, which can be tricky.

So, should you jump in? If you need a custom sensor for a robot or a rapid prototype, yes. If you need a high-speed CPU, no.

🔧 Getting Started: A Beginner’s Guide to Setting Up Your Lab


Video: I 3D Printed a 3D Printer.








Ready to dip your toes in? Here’s how to start without breaking the bank.

Step 1: Choose Your Path

  • The Hobbyist Path: Start with conductive filament (like Proto-Pasta) and a standard FDM printer. You’ll be limited to low-current applications, but it’s great for learning.
  • The Pro Path: Invest in a DIW system or a dual-extrusion printer like the nano3Dprint A20 (if you have the budget).

Step 2: Source Your Materials

  • Inks: Look for silver nanoparticle inks or carbon nanotube inks.
  • Substrates: Start with flexible PET or Kapton tape.
  • Tools: You’ll need a syringe pump, nozzles of various sizes, and a hot plate for sintering.

Step 3: Design Your Circuit

  • Use CAD software like Fusion 360 or SolidWorks to design your 3D structure.
  • Use PCB design software (like KiCad) to design the circuit, but keep in mind the resolution limits of your printer.

Step 4: Print and Sinter

  • Print your structure.
  • Apply the conductive ink (if not printing directly).
  • Sinter the ink at the correct temperature to activate conductivity.

Step 5: Test and Iterate

  • Use a multimeter to check for continuity.
  • Test your circuit with a power source.
  • Iterate: 3D printing is all about iteration. Don’t be afraid to fail.

What if you don’t have a lab? Many universities and makerspaces offer access to DIW systems and sintering ovens. Check your local 3D Printing in Education resources.


Video: Introduction to Printed Electronics.








The future is bright, and it’s flexible.

  • Active Components: We are moving closer to printing transistors and diodes directly, not just passive components.
  • Biodegradable Electronics: Imagine a sensor that dissolves after use, leaving no waste. MIT is already working on this.
  • Roll-to-Roll Manufacturing: High-speed production of flexible electronics for smart labels and wearables.
  • 4D Printing: Structures that change shape or function over time in response to stimuli.
  • Space Applications: Printing electronics on-demand in space for spacecraft repairs.

Will we ever print a smartphone? Maybe not a full one, but the components inside it? That’s the next frontier.

❓ Frequently Asked Questions About 3D Printed Electronics

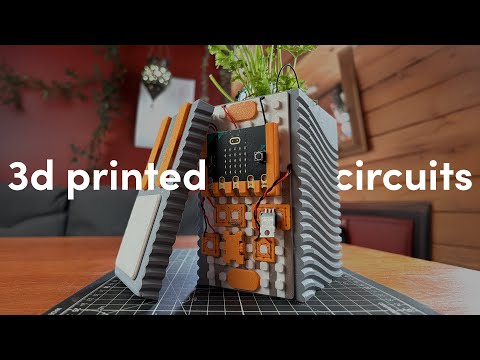

Video: I 3D Printed Circuit Boards – To Water My Plants!







What materials are best for 3D printed electronics?

Silver nanoparticle inks are the gold standard for conductivity. Carbon nanotubes and graphene are excellent for flexible applications. For structural parts, PLA and ABS are common, but polyimide is better for high-temperature applications.

Can you 3D print circuit boards at home?

Yes, but with limitations. You can use conductive filaments on a standard FDM printer for simple circuits. For more complex boards, you’ll need a DIW system or access to a maker space with advanced equipment.

How does 3D printed electronics differ from traditional manufacturing?

Traditional manufacturing is subtractive (etching away copper), while 3D printing is additive (depositing material). 3D printing allows for 3D geometries, embedded components, and rapid protyping, but currently has lower resolution and conductivity.

What are the most common applications of 3D printed electronics?

Wearable sensors, flexible antennas, custom robotics, rapid PCB protyping, and embedded electronics in complex structures.

Is 3D printed electronics durable enough for consumer products?

It depends on the application. For low-stress, low-current applications, yes. For high-power or high-stress environments, traditional PCBs are still superior. However, encapsulation and protective coatings can improve durability.

What software is needed to design 3D printed electronic components?

You’ll need CAD software (like Fusion 360 or SolidWorks) for the 3D structure and PCB design software (like KiCad or Eagle) for the circuit. Some systems, like nScrypt, have proprietary software for path planning.

How much does it cost to start 3D printing electronics?

Starting with conductive filament can cost as little as $50 for materials and a modified printer. Professional DIW systems can cost $10,0 to $50,0.

🏁 Conclusion

a close up of a circuit board

We’ve journeyed from the early days of subtractive etching to the cutting edge of 3D printed active electronics. The technology has come a long way, and while it may not replace the silicon chip in your smartphone anytime soon, it is revolutionizing how we create sensors, antennas, and custom circuits.

The Verdict:

  • For Hobbyists: Start with conductive filaments and a standard FDM printer. It’s a great way to learn the basics.
  • For Engineers: Invest in a DIW system or partner with a service like nScrypt for complex, multi-material projects.
  • For the Future: Keep an eye on MIT’s research into resetable fuses and active components. The line between “printed” and “active” is blurring.

Our Recommendation:
If you are serious about 3D printed electronics, the nano3Dprint A20 is a fantastic entry point for benchtop multi-material printing. For industrial-scale conformal printing, nScrypt is the undisputed leader.

The question remains: Will you be the one to print the next generation of smart devices? The tools are in your hands.

👉 Shop 3D Printed Electronics Materials & Hardware:

Books & Resources:

Jacob
Jacob

Jacob is the editor of 3D-Printed.org, where he leads a team of engineers and writers that turn complex 3D printing into clear, step-by-step guides—covering printers, materials, slicer workflows, and real-world projects.

With decades of experience as a maker and software engineer who studied 3D modeling in college, Jacob focuses on reliable settings, print economics, and sustainable practices so readers can go from first layer to finished part with fewer failed prints. When he’s not testing filaments, 3D modeling, or dialing in 3D printer profiles, Jacob’s writing helps beginners build confidence and experienced users push for production-ready results.

Articles: 424

Related Posts

Leave a Reply

Your email address will not be published. Required fields are marked *

Trending now

How Long Will a 3D Printer Last? 10 Essential Insights You Need to Know! 🖨️
3d, printer, printing
What’s the Difference Between Normal Printing and 3D Printing? Discover 10 Surprising Insights! [2024] 🖨️
12 Fascinating Examples of 3D Printing That Will Blow Your Mind! [2024] 🚀
Why is 3D Printing Illegal? 10 Shocking Reasons You Need to Know [2024] 🚫
