Shape-memory polymers for 3D printing transform static objects into dynamic, self-healing, and adaptive structures that react to heat, light, or moisture. These aren’t just flexible plastics; they are the backbone of 4D printing, allowing your creations to change shape on command.

Imagine printing a flat, compact box that, when dipped in hot water, instantly folds itself into a sturdy container. That’s the magic we’re exploring today. While standard filaments stay rigid forever, Shape-memory polymers for 3D printing introduce a “temporary shape” phase, letting you program movement directly into the material.

We once tried to print a simple hinge that would snap shut when heated, only to have it warp into a useless blob because we ignored the cooling rate. It was a humbling reminder that these materials demand respect for their internal stress.

Did you know that some medical stents made from these polymers can be inserted in a compressed state and then expand to fit a patient’s artery once they reach body temperature? This isn’t sci-fi; it’s happening right now in hospitals.

Key Takeaways

  • Dynamic Adaptation: Shape-memory polymers for 3D printing enable objects to change shape, self-heal, or assemble themselves when exposed to specific triggers like heat or light.
  • Material Matters: Success depends on choosing the right polymer (like PCL for low temps or TPU for flexibility) and mastering the transition temperature.
  • 4D Potential: These materials are the foundation of 4D printing, bridging the gap between static manufacturing and responsive, intelligent design.
  • Critical Settings: Precise control over cooling rates, layer adhesion, and post-processing annealing is essential to prevent warping and ensure reliable shape recovery.

Table of Contents

⚡️ Quick Tips and Facts

Before we dive into the molecular magic of shape-memory polymers (SMPs), let’s get the “need-to-know” straight. If you’re thinking this is just “flexible plastic,” you’re only scratching the surface of what these materials can do.

  • The “Magic” Trigger: Unlike standard plastics that just melt, SMPs have a specific transition temperature (either Glass Transition $T_g$ or Melting Temperature $T_m$). Below this temp, they are rigid; above it, they become pliable enough to reshape, then “lock” that new shape until reheated.
  • It’s Not Just Heat: While heat is the most common trigger, advanced SMPs can react to light, moisture, pH changes, or even electric currents.
  • The 4D Connection: This technology is the backbone of 4D printing—where a 3D printed object gains the ability to change shape or function over time without human intervention.
  • Biocompatibility Alert: Many SMPs, particularly those based on Polycaprolactone (PCL), are biocompatible, making them prime candidates for medical implants and stents.
  • The Catch: They generally have lower mechanical strength and fatigue resistance compared to standard engineering plastics like ABS or Nylon. They are for movement and adaptation, not necessarily for heavy load-bearing structures.

For more on how we test these materials at 3D Printed™, check out our main guide on 3D Printed.

🕰️ From Sci-Fi to Reality: A Brief History of Shape-Memory Polymers

MacBook Pro beside 3D printer

You might think shape-memory polymers are a recent invention born in a high-tech lab, but the concept has been simmering since the 1980s. While shape-memory alloys (like Nitinol) grabbed headlines in the 70s for their ability to “remember” metal shapes, polymers were the quiet underdogs.

The real breakthrough for 3D printing enthusiasts came when researchers realized they could tune the transition temperature of these polymers to match standard printing environments. Early experiments in the 20s focused on Selective Laser Sintering (SLS), where the laser itself could act as the trigger.

Fast forward today, and we have FDM filaments that you can literally bend with your hands after printing, only to snap back into a perfect cube when dipped in hot water. It’s a far cry from the rigid PLA bricks of the early 2010s. As noted in recent industry analyses, the shift from static protyping to dynamic production is what defines the current era of SMPs.

“As printer capabilities grow and 4D printing — the printing of parts that change over time — becomes more mainstream, shape memory polymers will likely play a central role.” — Sinterit

🧠 How Shape-Memory Polymers Actually Work: The Science Behind the Magic

So, how does a piece of plastic “remember” its original shape? It’s not magic; it’s polymer chemistry.

The Two-Phase Structure

Most SMPs consist of two distinct phases:

  1. Netpoints: These are the permanent cross-links (chemical or physical) that define the original shape. They act like the skeleton of the material.
  2. Switching Segments: These are the “smart” parts that soften and harden based on temperature. They act as the temporary locks.

The Cycle of Memory

  1. Programming: You heat the material above its transition temperature ($T_{trans}$). The switching segments become soft and rubbery.
  2. Deformation: You stretch, bend, or twist the part into a temporary shape.
  3. Fixing: While holding that shape, you cool it down below $T_{trans}$. The switching segments harden, “freezing” the temporary shape in place.
  4. Recovery: When you reheat it above $T_{trans}$, the switching segments soften again. The netpoints pull the material back to its original, permanent shape.

This process can be repeated, but be warned: fatigue sets in. After dozens of cycles, the material might not recover 10% of its original shape.

🏭 Top Shape-Memory Polymers for 3D Printing: Materials Breakdown


Video: Multi-shape active composites by 3D printing of digital shape memory polymers.








Not all SMPs are created equal. Depending on your printer and your project, you’ll need a specific type. Here is our breakdown of the most accessible and effective SMPs available to makers today.

Material Comparison Table

Material Transition Temp ($T_{trans}$) Primary Trigger Best For Difficulty
PCL (Polycaprolactone) ~60°C (140°F) Heat (Warm Water) Medical, Soft Robotics Easy
TPU (Thermoplastic Polyurethane) 40°C – 80°C (Varies) Heat Flexible Grippers, Wearables Medium
PLA Blends 5°C – 70°C Heat Educational, Protypes Easy
Specialty SMPs (e.g., Sinterit Flex) 10°C+ Heat/Laser Industrial SLS, Aerospace Hard

1. Polylactic Acid (PLA) Blends: The Entry-Level Chameleon

If you have a standard FDM printer, this is your gateway drug. Manufacturers like ColorFabb and eSUN have introduced PLA blends that incorporate SMP properties.

  • Pros: Easy to print, low warping, biodegradable.
  • Cons: Low heat resistance (you can’t leave it in a hot car), limited recovery force.
  • Use Case: Educational toys that change shape in hot water, or simple self-asembling boxes.

2. Polyurethane (TPU) Variants: The Flexible Powerhouse

TPU is naturally flexible, but specific formulations are engineered to have a distinct shape-memory effect. Brands like NinjaFlex (though often just flexible) and specialized SMP TPU filaments from Sintex or Polymaker are pushing boundaries.

  • Pros: High elasticity, durable, good layer adhesion.
  • Cons: Can be tricky to print (requires direct drive), prone to string.
  • Use Case: Self-tightening straps, adaptive footwear, and soft robotics grippers.

3. Polycaprolactone (PCL): The Low-Temperature Specialist

PCL is the gold standard for low-temp SMPs. It melts around 60°C, which is safe enough to handle with bare hands (carefully!) or dip in hot tap water.

  • Pros: Biocompatible, extremely easy to reshape, low energy consumption.
  • Cons: Very soft at room temperature, slow printing speeds required.
  • Use Case: Medical splints, custom orthotics, and biodegradable packaging.

4. Specialty SMPs: Nitinol-Inspired and High-Performance Options

For industrial applications, companies like Sinterit offer specialized powders for SLS printing. These materials can withstand higher temperatures and offer more complex multi-step transformations.

  • Pros: High precision, complex geometries, multi-material capabilities.
  • Cons: Requires expensive SLS equipment, limited availability for hobbyists.
  • Use Case: Aerospace deployable structures, advanced medical stents.

👉 Shop Shape Memory Filaments on:

🖨️ 3D Printing Techniques for Shape-Memory Materials: FDM, SLS, and Beyond


Video: COMBINING 3D PRINTING WITH SHAPE-MEMORY ALLOY ACTUATION FOR PROSTHETIC APPLICATIONS.








The method you choose dictates the quality of the memory effect.

1. Fused Deposition Modeling (FDM) Best Practices

FDM is the most accessible route, but layer adhesion is critical. If the layers don’t bond well, the part will delaminate when it tries to recover its shape.

  • Nozzle Temp: Keep it just high enough to flow, but not so high that it degrades the polymer chains.
  • Bed Temp: Crucial for PCL and TPU. A heated bed prevents warping during the initial cooling phase.
  • Cooling: Do not use part cooling fans for the first few layers. SMPs need to cool slowly to set the internal stress correctly.

2. Selective Laser Sintering (SLS) and Powder Bed Fusion

SLS is the “pro” choice for SMPs. Since the entire bed is heated to just below the melting point, the material is already in a semi-active state.

  • Advantage: No support structures needed, allowing for complex internal mechanisms.
  • Process: The laser sinters the powder, and the part is often “programed” during the cooling cycle in the machine.

3. Stereolithography (SLA) and Digital Light Processing (DLP) Considerations

Resin-based SMPs are an emerging field. These use photopolymers that crosslink under UV light.

  • Challenge: The transition temperature is often harder to tune precisely compared to thermoplastics.
  • Potential: Excellent for micro-scale medical devices and intricate lattice structures.

🛠️ 7 Critical Settings to Master for Successful SMP Prints


Video: “Breathing Facade” by 3D-Printed Auxetic Pattern with Shape Memory Polymer (SMP).







Want your print to snap back perfectly? You can’t just hit “Print” and walk away. Here are the 7 settings that make or break the memory effect:

  1. Layer Height: Use 0.1mm – 0.2mm. Thicker layers reduce the surface area for bonding, leading to weak recovery forces.
  2. Infill Density: Aim for 10% infill or a gyroid pattern. Hollow parts may not generate enough internal stress to recover fully.
  3. Print Speed: Slow it down! 30-40mm/s is often the sweet spot. Fast printing introduces too much thermal stress that fights the memory effect.
  4. Nozzle Temperature: Experiment within a 5°C range. Too hot degrades the switching segments; too cold causes poor adhesion.
  5. Bed Adhesion: Use PEI sheets or glue sticks. SMPs can warp significantly during the cooling phase.
  6. Retraction: Minimize retraction distance to prevent clogging, especially with TPU-based SMPs.
  7. Post-Processing Annealing: This is the secret sauce. After printing, heat the part to just below the transition temperature and hold it in the desired shape, then cool it. This “programs” the temporary shape.

🎨 Designing for 4D Printing: Geometry, Triggers, and Actuation Strategies


Video: Shape Memory 3D Printing Material – Self-Opening Box.








Designing for SMPs is like designing a spring that you can’t see. You aren’t just designing a shape; you’re designing a behavior.

Geometry Matters

  • Hinges and Joints: Design thin sections that will heat up faster than the rest of the part. This creates a “hinge” effect where the part bends at specific points.
  • Lattice Structures: Use gyroid or honeycomb infills to allow for expansion and contraction without breaking.

Trigger Placement

If you are using heat, consider thermal mass. A thick part will take longer to activate than a thin one. You can design parts that activate in a sequence by varying the thickness of different sections.

Multi-Material Printing

The holy grail is combining a rigid material with an SMP. Imagine a robotic arm where the joints are SMP (for movement) and the bones are rigid PLA. This requires a dual-extruder setup and careful calibration.

For inspiration, check out these 3D Printable Objects that utilize adaptive geometry.

🔥 Real-World Applications: From Self-Healing Gears to Medical Stents


Video: Shape Memory Polymers: Smart Materials That Remember.








Where are we seeing SMPs in the wild?

  • Medical Devices: Self-expanding stents that are compressed for insertion and expand to fit the artery once body temperature is reached.
  • Soft Robotics: Grippers that can pick up delicate objects (like an egg) without sensors, simply by reacting to a heat source.
  • Aerospace: Deployable solar panels or antennas that fold compactly for launch and unfold in space when exposed to sunlight.
  • Consumer Goods: Eyewear frames that can bent out of shape and snapped back with hot water.

As highlighted in the video below, the versatility of SMPs allows for hobbies and education where the user can manually reshape the object, making it a fantastic tool for teaching material science.

⚠️ Troubleshooting Common SMP Printing Issues: Warping, Delamination, and Memory Loss


Video: Body temperature programmable shape memory polymer: UV 3D printable version.







Even the best engineers hit a wall. Here’s what usually goes wrong:

  • Warping: SMPs have high internal stress. If your bed isn’t level or the adhesion is poor, the part will curl up before it even cols. Fix: Use a brim and ensure the bed is perfectly calibrated.
  • Delamination: If the layers don’t bond, the part will fall apart when it tries to recover. Fix: Increase nozzle temperature slightly and reduce print speed.
  • Memory Loss: The part doesn’t snap back. Fix: You likely didn’t cool it properly while deforming it, or the transition temperature was exceeded during printing, degrading the switching segments.
  • String: Common with TPU-based SMPs. Fix: Tune your retraction settings and lower the nozzle temperature.

🧪 Testing Your Prints: How to Verify Shape Recovery and Durability


Video: Flat to Folded: The Science of Shape-Shifting 3D Prints.








How do you know if your print is good?

  1. The Hot Water Test: Dip the part in water at the specific transition temperature. Does it return to the original shape within 30 seconds?
  2. The Cycle Test: Deform and recover the part 10 times. Does it still recover 10%? If not, you’ve hit the fatigue limit.
  3. Force Measurement: Use a simple scale to measure how much force the part exerts when recovering. This is crucial for robotics applications.

🌍 Sustainability and Recycling of Shape-Memory Polymers

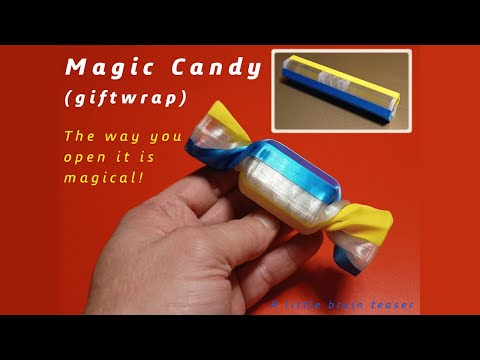

Video: Magic Candy (3D printed GiftWrap) – example of shape memory effect of PLA.







One of the biggest selling points of SMPs is their potential for sustainability.

  • Self-Healing: Some SMPs can “heal” cracks when heated, extending the life of the product.
  • Recyclability: Many SMPs (like PCL and PLA blends) are biodegradable or easily recyclable.
  • Waste Reduction: 4D printing allows for compact shipping (flat-packed) and assembly on-site, reducing logistics carbon footprints.

However, the energy required to heat and cool these parts repeatedly must be considered. It’s a trade-off between material longevity and energy consumption.

🏆 Conclusion

white bauble ball

We started this journey wondering if a piece of plastic could truly “remember.” The answer is a resounding yes, but with caveats. Shape-memory polymers are not a magic bullet for every 3D printing project. They are specialized tools for specific problems: adaptive robotics, medical implants, and deployable structures.

If you are a hobbyist, start with PCL or PLA blends. They are forgiving, cheap, and offer that “wow” factor when you dip them in hot water. If you are an engineer, look into SLS and multi-material printing to unlock the full potential of 4D printing.

The future is dynamic. We are moving from a world of static objects to one where our creations can adapt, heal, and change. As the technology matures and prices drop, we expect to see SMPs in everything from our shoes to our cars.

Our Verdict:

  • ✅ Pros: Incredible adaptability, biocompatible, potential for self-healing, enables 4D printing.
  • ❌ Cons: Lower mechanical strength, fatigue over cycles, sensitive to temperature, requires precise printing settings.
  • Recommendation: Highly recommended for educational, medical, and soft robotics applications. Use with caution for structural load-bearing parts.

Ready to start your 4D printing journey? Here are the best places to grab materials and tools:

❓ FAQ

A white sculpture sitting on top of a table

Are shape-memory polymers compatible with standard 3D printers?

Yes, but with conditions. Most standard FDM printers can print SMPs like PCL and PLA blends. However, you may need a direct drive extruder for TPU-based SMPs to prevent grinding. SLS printers require specialized powders and heated chambers.

What industries benefit most from 3D printing with shape-memory polymers?

Medical, Aerospace, and Soft Robotics are the top beneficiaries. The medical field uses them for stents and splints; aerospace for deployable structures; and robotics for adaptive grippers.

How to design 3D models for shape-memory polymer printing?

Focus on geometry that facilitates movement. Use thin sections for hinges, lattice structures for flexibility, and consider the transition temperature when designing thermal mass. Avoid sharp corners that could cause stress fractures during recovery.

Read more about “🚀 Nanocomposites for 3D Printing: The Ultimate 2026 Guide to Supercharged Parts”

Can shape-memory polymers be used for functional 3D printed parts?

Absolutely. They are used in functional soft robotics, adaptive clothing, and medical devices. However, they are generally not suitable for high-load, static structural parts due to lower tensile strength compared to engineering plastics.

Read more about “15 Game-Changing Functional 3D Prints You Can Make Today 🛠️ (2026)”

What are the best shape-memory polymers for 3D printing applications?

It depends on the application:

  • PCL for low-temp, biocompatible needs.
  • TPU for flexible, durable applications.
  • PLA Blends for easy, educational protyping.
  • Specialty SLS Powders for industrial precision.

How do shape-memory polymers work in 3D printed objects?

They work through a two-phase system: permanent netpoints that define the original shape and switching segments that lock a temporary shape when cooled. Reheating softens the switching segments, allowing the netpoints to pull the object back to its original form.

Read more about “12 Mind-Blowing Graphene 3D Printing Applications You Must See (2025) 🚀”

What are the advantages of using shape-memory polymers in 3D printing?

  • Adaptability: Parts can change shape post-print.
  • Compact Shipping: Parts can be shipped flat and assembled on-site.
  • Self-Healing: Some can repair minor damage.
  • Biocompatibility: Safe for medical use.

What are the limitations of using shape memory polymers for 3D printing?

  • Fatigue: They lose effectiveness after many cycles.
  • Temperature Sensitivity: They can deform unintentionally in hot environments.
  • Mechanical Strength: Generally weaker than standard engineering plastics.
  • Complexity: Requires precise printing and post-processing.

Read more about “🔄 12 Ways 3D Printing Powers the Circular Economy (2026)”

How long does it take for a 3D printed shape memory object to recover its shape?

It varies by material and thickness. Thin parts can recover in seconds when dipped in hot water. Thick parts may take minutes to heat through and recover fully.

What are some creative project ideas using shape memory polymers in 3D printing?

  • Self-tightening shoe laces.
  • Adaptive phone cases that change shape when heated.
  • Educational models that demonstrate material science.
  • Soft robotic grippers for delicate objects.
  • Deployable planters that expand when watered (if moisture-activated).

Jacob
Jacob

Jacob is the editor of 3D-Printed.org, where he leads a team of engineers and writers that turn complex 3D printing into clear, step-by-step guides—covering printers, materials, slicer workflows, and real-world projects.

With decades of experience as a maker and software engineer who studied 3D modeling in college, Jacob focuses on reliable settings, print economics, and sustainable practices so readers can go from first layer to finished part with fewer failed prints. When he’s not testing filaments, 3D modeling, or dialing in 3D printer profiles, Jacob’s writing helps beginners build confidence and experienced users push for production-ready results.

Articles: 422

Related Posts

Leave a Reply

Your email address will not be published. Required fields are marked *

Trending now

How Long Will a 3D Printer Last? 10 Essential Insights You Need to Know! 🖨️
3d, printer, printing
What’s the Difference Between Normal Printing and 3D Printing? Discover 10 Surprising Insights! [2024] 🖨️
12 Fascinating Examples of 3D Printing That Will Blow Your Mind! [2024] 🚀
Why is 3D Printing Illegal? 10 Shocking Reasons You Need to Know [2024] 🚫
